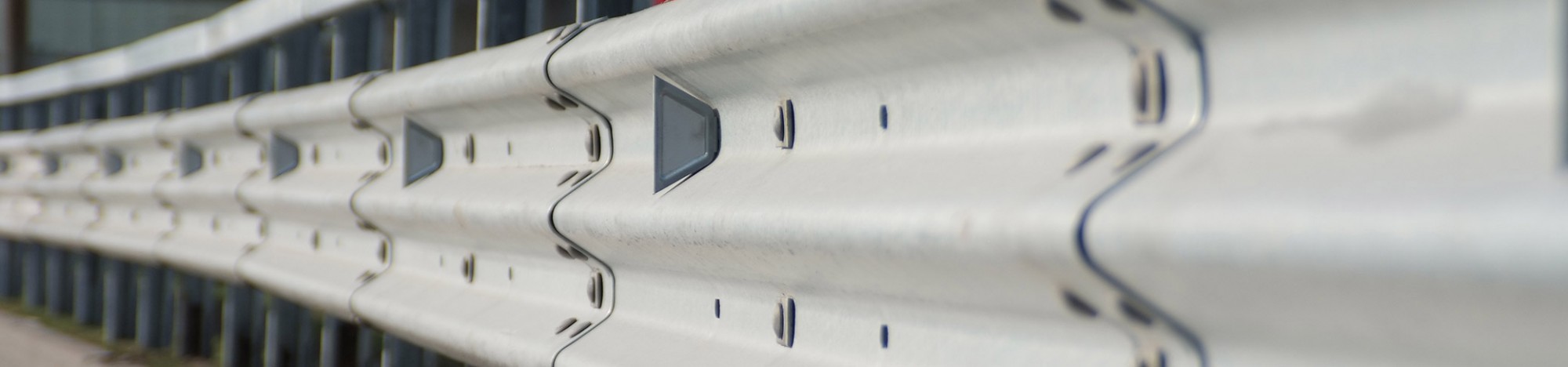

A Metal Crash Barriers is an effective road safety system serving to protect vehicles and its occupants in the case of a mishap and also serve as a good visual guide for drivers, especially in the night.It is also being widely used across median & separator on 4/6 lane highways.
Based on the guidelines issued by Ministry of Road Transport & Highways (MORTH) and other international specifications like AASHTO M180 & EURO EN1317-1 & 2, we are manufacturing “W" beam and "Thrie" beam type steel crash barrier systems.
Standard Dimensions Of Sections Are Given Below:
| Section | Length (mm) | Width (mm) | Thickness (mm) |
|---|---|---|---|
| W Beam | 4318 | 312 | 3/2.67 |
| Post | 150 | 75 | 5/4.2 |
| Spacer | 150 | 75 | 5/4.2 |
Metal Crash Barriers Are Widely Being Used As Security Mechanism For Flyover Projects, Bridges, National Highway Projects And Several Others, Such As
Premier is one of the leading manufacturer of Cable Management Systems in India, holding a vast experience in conducting research activities based on which we have designed and developed product line to suit the customer's needs. Our experience helps us to contribute in the form of new ideas which will save cost, space and material which in turn make the customer competitive in the market.
We are specialized on Support Systems of various types, Cable Trays and Accessories and Raceways. We have standard products to meet the immediate customer requirements as well as products as per customer requirements.
A range of our standard Perforated Cable Trays (no caps) are listed below:
| WIDTH (mm) | 100 | 75 | 50 | 150 | 200 | 300 | 500 | 600 |
|---|---|---|---|---|---|---|---|---|
| HEIGHT(mm) | 30 | 35 | 35 | 50 | 50 | 50 | 75 | 100 |
| THICKNESS(mm) | 5 | 3 | 3 | 5 | 5 | 5 | 3 | 5 |
The perforated type, solid bottom, pre-drilled cable tray are designed for light loads namely instrumentation and control cables and for transition from cable trays to individuals control points. Uniformly Distributed Load (UDL) bearing capabilities in kg/meter are given in below table.
| WIDTH (mm) | ULD in KG/Meter | SPAN (mm) |
|---|---|---|
| 50 | 10 | 1000 |
| 75 | 15 | 1000 |
| 100 | 20 | 1000 |
Some range of our standard Perforated Cable Trays are as listed in the below table:
| WIDTH(mm) | 150 | 150 | 300 | 300 | 500 | 500 | 600 | 600 | 900 | 900 | 1000 | 1500 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HEIGHT(mm) | 100 | 75 | 100 | 75 | 100 | 75 | 100 | 75 | 100 | 150 | 150 | 150 |
| THKICKNESS(mm) | 5 | 3 | 5 | 3 | 5 | 3 | 5 | 3 | 5 | 5 | 5 | 5 |
Metal Crash Barriers Are Widely Being Used As Security Mechanism For Flyover Projects, Bridges, National Highway Projects And Several Others, Such As
