At premier we have set up a state of the art designing & manufacturing facility near Jaipur to design & manufacture galvanized steel tower, high mast & octagonal poles and accompanying steel structure required by power transmission & distribution, telecommunication and lightning sector in various surface treatment finishes.

Our core production team consists of veterans from the industry who are equally supported & assisted by team of experienced supervisor & technicians who have ample industry working experience.

Premier group has a very strong past credentials in manufacturing & supplying steel tubular poles since last 25 years.

We have manufactured & supplied more than 2 Lacs poles to various discoms across the country and internationally. Some of our prestigious supplies have been of 20000 + poles to Iraq & 5000 + galvanized poles to Bhutan, details of the same are enclosed for your ready reference.

We have a sprawling manufacturing & fabricating facility located at Bagru Industrial area, Jaipur with well-equipped modern machines & facilities with a processed chained system where raw material once fed comes out as a finished product. EOT cranes & Hydra cranes are deployed ensuring smooth streamlined production.

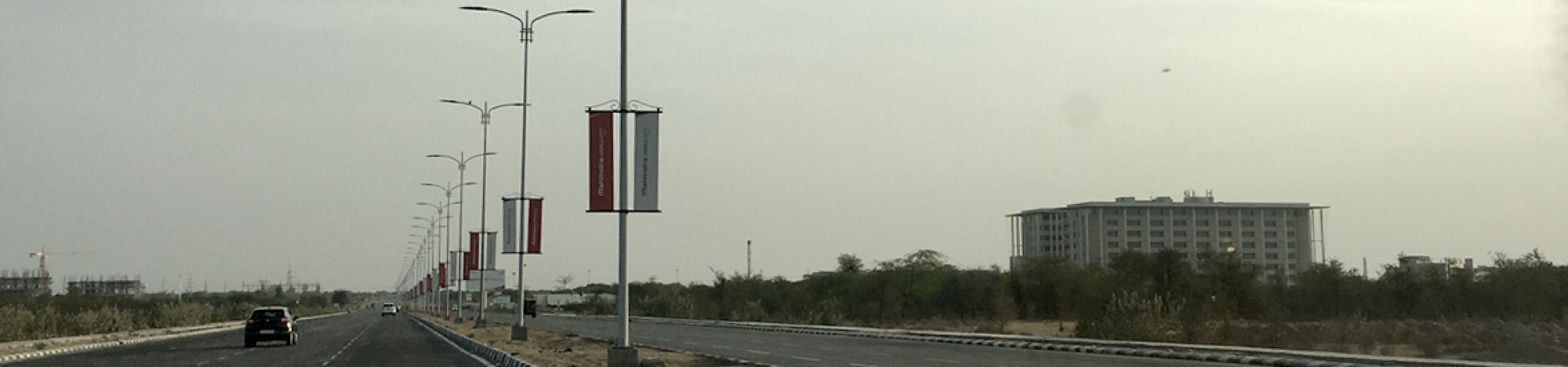

STREET LIGHTING POLE

• OCTAGONAL
• HIGHMAST
• CONICAL
• TUBULAR & SWAGED

OCTAGONAL POLE

OCTAGONAL POLE, FOR PRIMARY USE AS STREET LIGHTING POLES. PRODUCTS ARE FABRICATED USING PREMIUM QUALITY RAW MATERIAL AND ARE CUSTOMIZED TO CLIENT’S SPECIFICATION. THE POLES ARE MANUFACTURED FROM TAPERED POLYGONAL OR CIRCULAR SECTIONS, WHICH ARE SLIPPED TOGETHER AT SITE AND SO MAINTENANCE OF CLOSE TOLERANCES AND STRAIGHTNESS ARE TRUST AREAS. THEY COME READY AS FLANGE- PLATED, GALVANIZED AND CUSTOM DESIGNED. USE OF HIGH-STRENGTH SHEET STEEL AND CAN PRODUCE SINGLE.

DIMENSION:

Height:(5 to 12)mtr

External Diameter:

Min. at top : 60mm

Max. at bottom : on request

MATERIAL STANDARDS:

IS : 5986, (FE -510)

EN 10027 -1-1992

ASTM - A656 (GR-60)

GALVANISATION:

IS : 2629

EN- 10027 - 1 - 1992

ASTM - A123 / A123M-02

POLMAX can design these poles from as low as 3 meters to as high as 20 meters due to their wide range of usage

APPLICATION:

• Infrastructural Lighting

• Communities & Residential Developments

• Highways & Internal Roads

• Sports Ground

POLE SHAFT:

Confirms to IS 5986 The shaft can be of one of two pieces.

ANCHOR BASE:

Structural Quality, Confirms to IS 5986

ANCHOR BOLT:

Carbon Steel of Grade 8.8. Bolts are L Shaped and are galvanized as per IS2629 Each pole includes 4 no's of Bolts with 2 Nut and 2 washers each.

SERVICE DOOR:

A covered reinforced hand-hole is supplied depending on the size of the lighting pole.

HARDWARE:

All structural fasteners are galvanized high strength carbon steel.

All other fasteners are galvanized,

zinc plated or stainless steel.

STANDARD FINISH:

Galvanized as per IS 2629.

MOUNTING OPTIONS:

Brackets can be customized as per lighting fixture.

OCTAGONAL POLE:

  HIGH MAST POLE

POLMAX IS ENGAGED IN THE DESIGN AND SUPPLY OF HIGH MASTS WITH A VERY WIDE USAGE FIELD FOR LIGHTING PURPOSES IN SQUARES, INTERSECTIONS & ROUNDABOUTS, SEA-PORTS, AIRPORTS, SPORTS AREAS, BUS TERMINALS, HISTORICAL AND TOURIST SPOTS.WE DESIGN, MANUFACTURE AND SUPPLY HIGH MAST FROM 12 MTR TO 30 MTR AND THEY REQUIRE MINIMUM MAINTENANCE AND COMPLETE MAST AND FITTINGS CAN BE MAINTAINED AT GROUND LEVEL FOR GREATER SAFETY.

Lowering headframe masts allow the headframe to be lowered with a winch and are ideal for accessing headframes at ground-level when space around the mast is tight. These lowering headframe masts provide easy maintenance access at mast base and offer additional features such as optional headframe latching.Benefits include reducing risks of multiple internal cable-snagging problems by using a single multi-core electrical cable system for up to 12 floodlights.High masts can be manufactured as single-direction, two-direction and circular multi-directional types according to floodlight orientation, depending on the customer’s requirements. Our high mast poles are two sided Galvanized and thus have a better durability.

TECHNICAL SPECIFICATION:

•  20 sided polygonal continuously tapered cross section.

•  Unique gravitational self-latching and unlatching system.

•  Quick raising and lowering system.

•  Proven double drum winch and winch motor.

•  Heavily reinforced door opening to prevent buckling.

•  Anti-vandalism door lock.

•  Conforms to Indian/international Standard:

Mast design as per wind load for structure - IS 1875(part III) 1987 GENERAL CONSTRUCTION IN STEEL - IS 800 2007 Material: BS EN 10025 S355 / JIS G3101 SS400

Welding: BS 5135

Galvanizing: ISO 1461

OPTION:

•  Height from 12mtr to 30mtr

•  Custom-made luminaire fixing bracket to suit customers’ requirements.

•  Double luminaire carriage ring.

APPLICATION:

• Airports

• Harbours

• Highway

• Sports ground

• Parking Lots
